Input handling

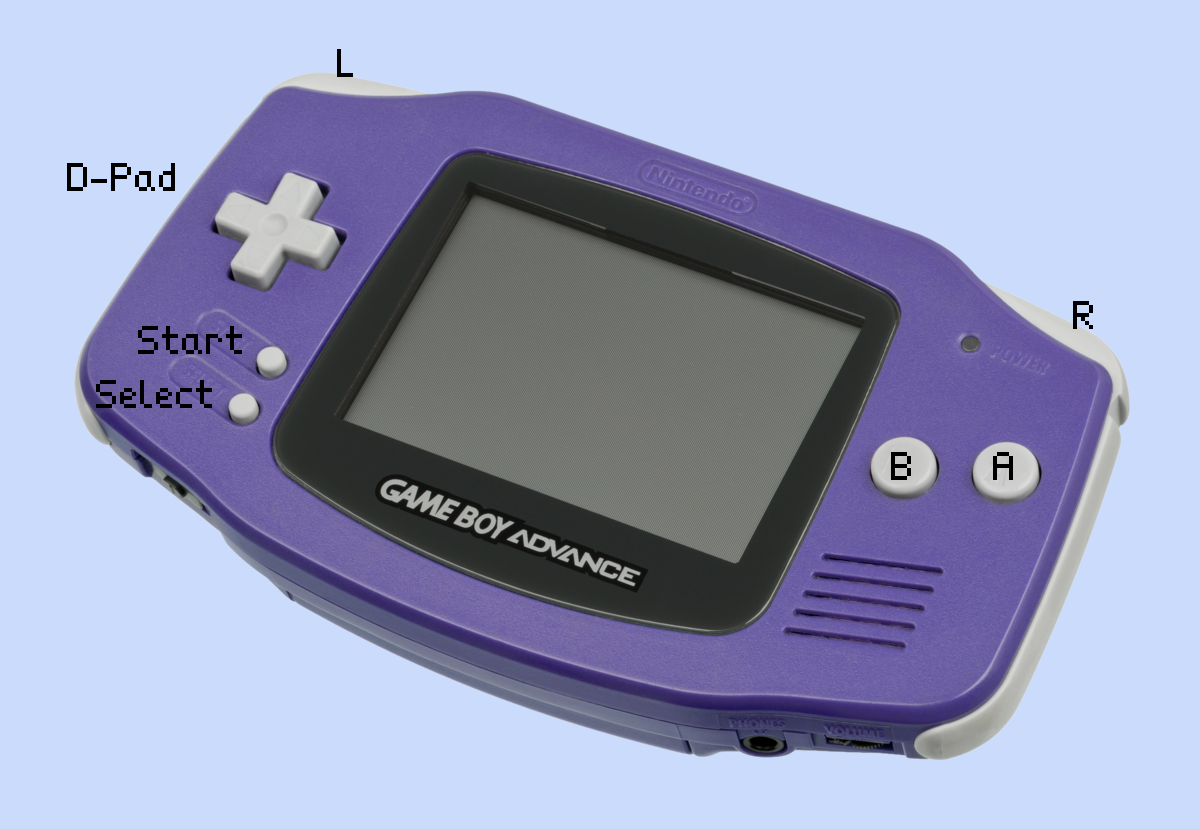

Diagram of the console with the buttons marked

The Game Boy Advance provides a total of 10 buttons.

  • The 4 directional pad (D-Pad)
  • The A and B buttons
  • The L and R triggers
  • Start and select buttons

These are represented in agb with the Button struct.

When running the game under an emulator, the default key-mapping on a QWERTY keyboard is as follows:

GBA buttonEmulator
D-padArrow keys
AX
BZ
StartEnter
SelectBackspace
L triggerA
R triggerS

Reading the current state

To track the currently pressed buttons, you need a ButtonController. Create one with the ButtonController::new() method, and then each frame use the update() method to update its current state.


#![allow(unused)]
fn main() {
use agb::input::ButtonController;

let mut button_controller = ButtonController::new();

loop {
    button_controller.update();
    // Do your game logic using the button_controller

    let mut frame = gfx.frame();
    // ...
    frame.commit();
}
}

In theory you could have multiple ButtonController instances across your game, but most will create one and pass it through as needed.

Useful ButtonController methods

There are a few methods provided on the ButtonController which allow you to easily handle user input.

.is_pressed() and .is_released()

The simplest methods are the is_pressed() and is_released() methods. These takes a Button and returns a boolean indicated whether or not the given button is pressed or released.


#![allow(unused)]
fn main() {
if button_controller.is_pressed(Button::B) {
    // do something while the `B` button is pressed
}
}

You can use this method for changing some state while a button is pressed. For example, increasing the player's speed while they are pressing the B button to implement running.

.is_just_pressed() and .is_just_released()

These will return true for 1 frame when the provided button transitions from not pressed to pressed. You can use these as interaction with a menu, or a jump.

You could use .is_just_released() to act on a menu action to do the action on release of the button.


#![allow(unused)]
fn main() {
if button_controller.is_just_released(Button::A) {
    // do the action of the currently selected menu item
}
}

x_tri(), y_tri() and lr_tri()

The Tri enum represents a negative, zero or positive value. Its main use is to represent whether the D-Pad could be considered to be going in some direction or not at all, gracefully handling the case where the player has both buttons pressed at once.

Tri can be converted to a signed integer to use it to easily move something player controlled. For example, we use it in the 'pong' tutorial to move the paddle based on the y direction being pressed.


#![allow(unused)]
fn main() {
paddle.move_by(button_controller.y_tri() as i32);
}

These methods also have just_pressed() variants which can be used in the same way as the is_just_pressed() methods to be able to have a direction which is affected for a single frame.

vector()

The vector() method is a combination of the x_tri() and y_tri() methods. It returns a vector with an x and y component of -1, 0 or 1 depending on whether that direction is pressed. This can be used to move a player around in a 2d-plane, or you can use the just_pressed_vector() to allow navigation of a 2d menu.

Detecting simultaneous button presses

All the methods which accept Button as an argument can check if multiple buttons are pressed at once. You can do this with:


#![allow(unused)]
fn main() {
if button_controller.is_pressed(Button::A | Button::B) {
    // ...
}
}

The above if statement will only happen if both A and B are pressed simultaneously.

Using this with is_just_pressed isn't recommended because it can be quite hard to press button simultaneously within the 1/60th of a frame time you'd have.
